Campogalliano Strand | Porcelain Tile
Strand is a colored-body glazed porcelain composed of six versatile, soft tones with a linear stone look. The authenticity of real stone is the result of digital printing technology. The contemporary palette and harmony of Strand’s linear patterns create the ideal backdrop for today’s most current interior design trends.

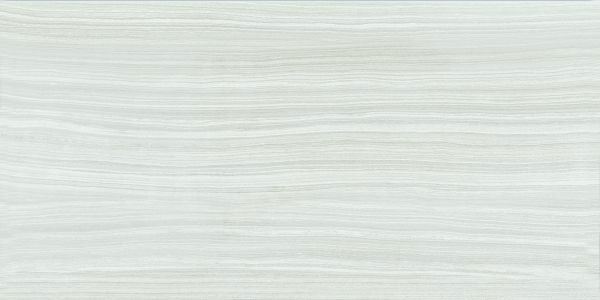

White

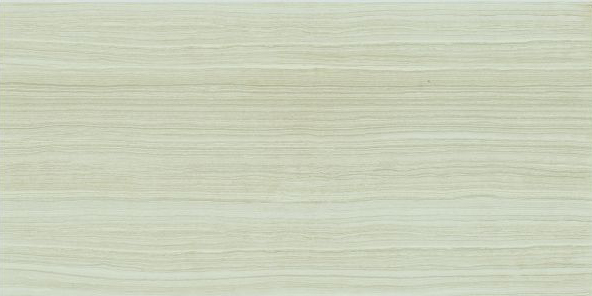

Beige

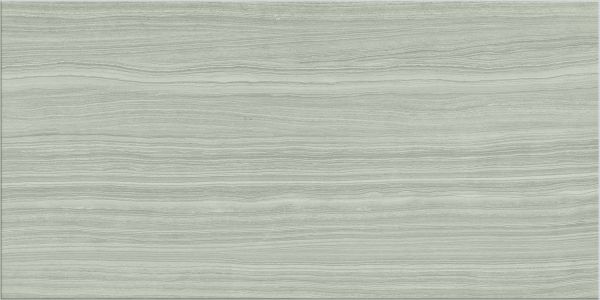

Silver

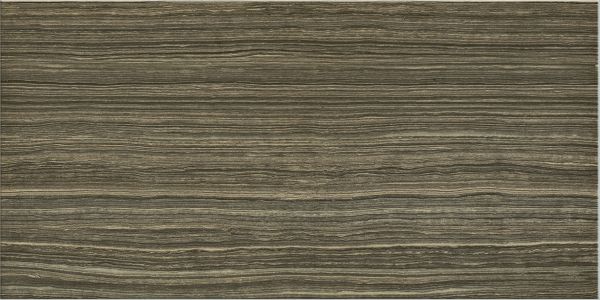

Tobacco

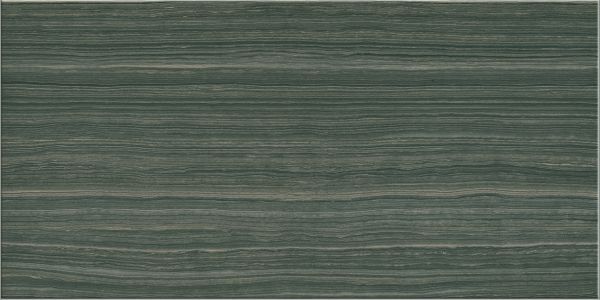

Iron

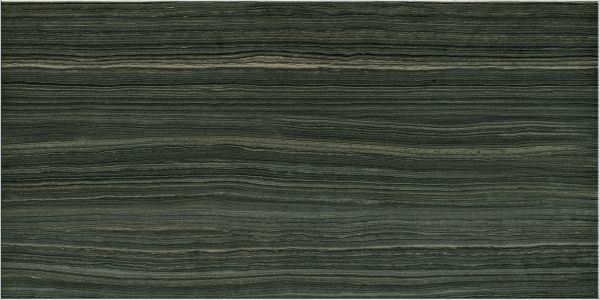

Moro
Colors, Sizes & Trim
| Colors | |
|---|---|
| CGSDBE | Strand Beige |
| CGSDIN | Strand Iron |
| CGSDMO | Strand Moro |
| CGSDSR | Strand Silver |
| CGSDTO | Strand Tobacco |
| CGSDWE | Strand White |
| Sizes | |
| CGSD--/1224 | 12 x 24 |
| CGSD--/22 | 2 x 2 Mosaic |
| Trim | |
| CGSD--/SBN | 4 x 24 Surface Bullnose |
| Coordinating Trim | |
| CGSD--/A112 | 12” Quarter Round |
| CGSD--/AC112 | Beak |
Images
Mosaic
The 2 x 2 Mosaic is not modular with the 12 x 24 field. Mounted on a 12 x 12 sheets
Trim
The surface bullnose is made from field tile that is cut, ground and reglazed.
Coordinating Trim
Available in SR Silver and WE White. Expect variation in color and size between field and trims.
Usage
Suitable for both residential and moderate commercial installations.
Installation Information
We recommend using a tile leveling system to install this product.
Before installing the tile you should:
• Ensure the perfect planarity (flatness) of underlying floor base.
• Always double-check the quality of the tiles.• When setting, tile should be only slightly staggered so that the ends of the tiles are within 8” or less from the ends of the corresponding staggered tile. (See figures 1 & 2)
• Staggered spacing does not need to be uniform, but should not exceed 8” recommendation.
• A minimum joint of 2 or 3 mm between tiles is recommended.
• It is preferable to use a grouting material that matches the color of the tiles.
PEI Rating:
PEI 5 Beige, White and Silver
PEI 4 Tobacco and Iron
PEI 3 Moro
