metal 1

Metal 01

metal 2

Metal 02

metal 3

Metal 03


Colors, Sizes & Trim

Colors
FGSM1S
Metal 01 (Dk. Steel Grey)
FGSM2S
Metal 02 (White)
FGSM3S
Metal 03 (Lt. Grey)
Sizes - Rectified
FGSM-S/1632 16 x 32
FGSM-S/244824 x 48
FGSM-S/327132 x 71
FGSM-S/222 x 2 Mosaic
Trim
FGSM--S/SBN 2 x 24 Surface Bullnose

Additional Information

Images

Sizes

Stocked in Soft Finish (Honed) - R9.

24 x 48 & 32 x 71 Size Handling Information: Due to the special packing required for the large format tiles, orders for the 24 x 48 and 32 x 71 size must be for full box quantities only and we are not able to fill orders on the same day as placed.

Trim

Surface Bullnose is made from field tile that is cut, ground and reglazed.

Usage & Installation

Styletech Metal Series is suitable for both residential and commercial installations.

Most Italian manufacturers recommend a maximum offset of 8” (20cm) on all large format tiles when setting running bond. Please refer to ANSI requirements for setting large format tiles ANSI A108.02 Section 4.3.8.

There are special setting requirements and materials for large format tiles. Please refer to the TCNA Handbook and guidelines by your mortar manufacturer for more information.

It is important to mix tiles within each carton and blend from several cartons to get a proper balance of variation.

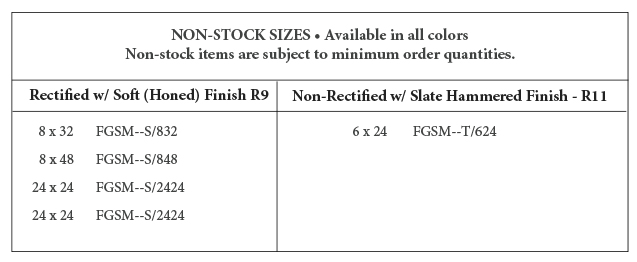

Non-Stock

size italyitaly

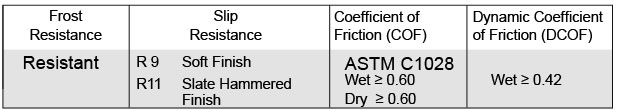

testing




The Coefficient of Friction is a general guide only. Testing may vary with different production runs and with different testing labs.

As noted in the American with Disabilities Act (ADA) the coefficient of friction varies considerably due to facts not under the control of entities such as the manufacturers and distributors. These factors include, but are not limited to, contaminants, slope of terrain, drainage conditions, adjacent surfaces, etc. Suitability for any installation can only be determined by a site examination of all conditions that could affect the slip resistance of the tile being installed. Continual cleaning and maintenance must be performed once the tile has been installed.
