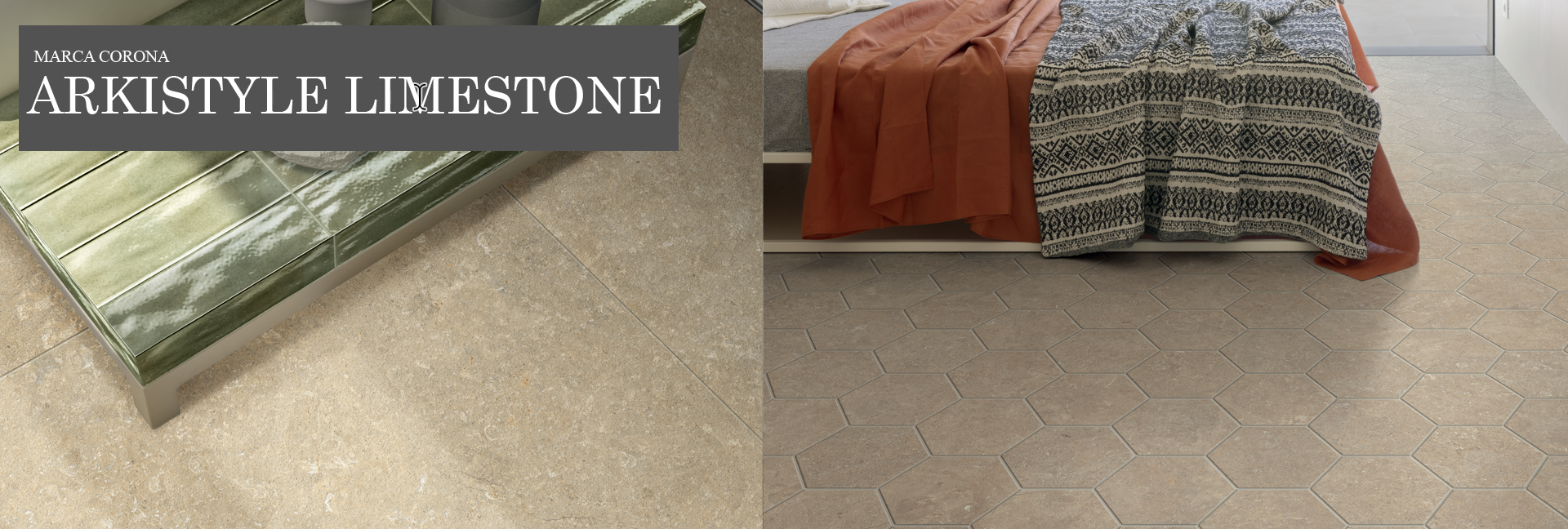

Marca Corona Arkistyle Limestone | Italian Glazed Porcelain Tile
The Arkistyle Limestone is a refined limestone look featured by the inclusion of marine fossils. Some of the fossils are hinted at and blend with the background color and others are more visible. With the classic 12 x 24 size and the 8-1/2” Hexagon, the Arkistyle offers options that lend themselves to original installations and customized spaces. The color palette is carefully designed to calibrate the tones and soft graphic effect allowing for colors to be combined together and used with other collections.

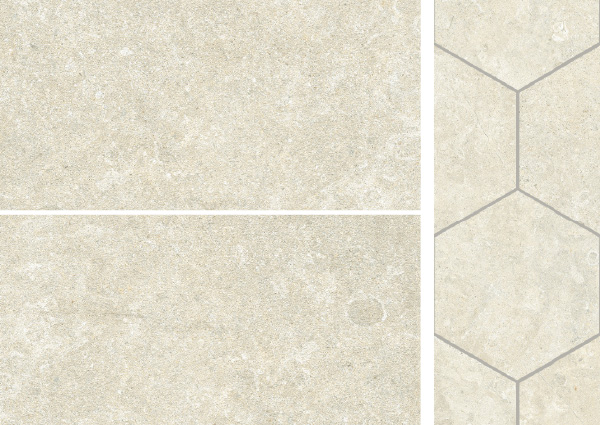

Clay (MCALCY)

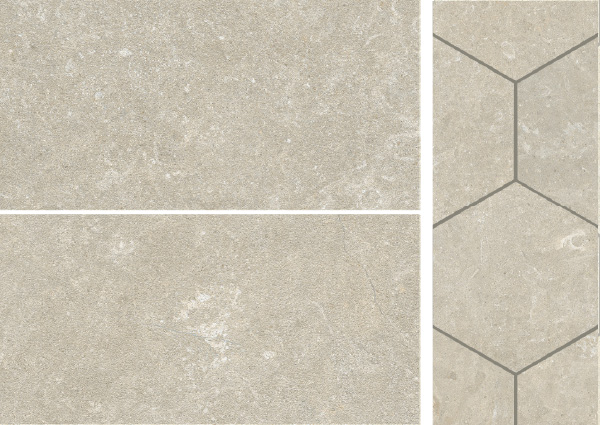

Limy (MCALLY)

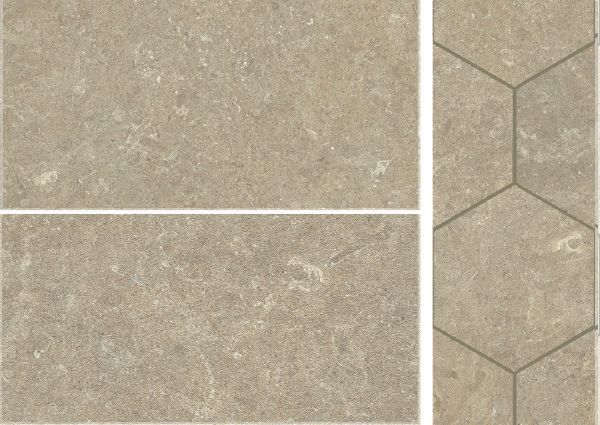

Earth (MCALEH)

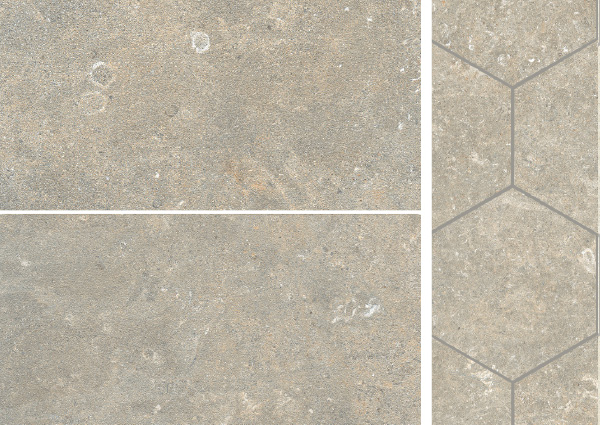

Fossil (MCALFL)

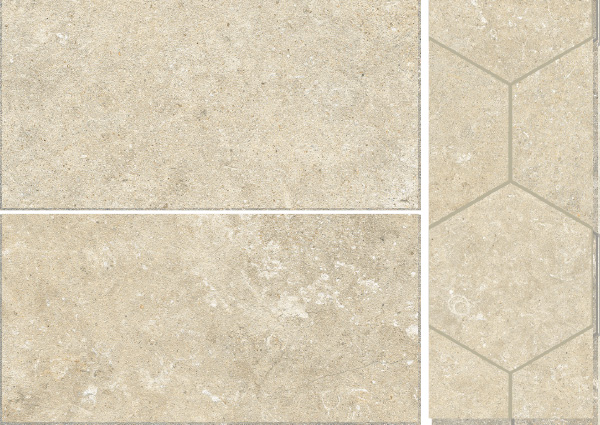

Sand (MCALSD)
Colors, Sizes & Trim
| Colors | |
|---|---|
| MCALCY | Clay |
| MCALEH | Earth |
| MCALFL | Fossil |
| MCALLY | Limy |
| MCALSD | Sand |
| Sizes (Rectified) | |
| MCAL--/1224 | 12 x 24 |
| Sizes (Non-Rectified) | |
| MCAL--/9HX | 8-1/2” Hex |
| Mosaic | |
| MCAL--/22 | 2 x 2 Mosaic |
| Trim | |
| MCAL--/SBN | 3 x 24 Surface Bullnose |
Sizes
Please note that, while the 12 x 24 and the 8-1/2” Hexagon come in all the same colors, they are produced on different production lines and have their own graphic development. So they will coordinate with each other, but are not expected to have an exact match.
Trim
The surface bullnose is made from field tile that is cut, ground and reglazed.
Usage & Installation
Suitable for residential and commercial use.
To attain the proper mix of graphics and color it is important to pull from multiple boxes during installation, rotate pieces, and note the placement of the different images to get the proper final blend.
Most tile manufacturers recommend a maximum offset of 8” (20 cm) on all large format tiles when setting a running bond. Please refer to ANSI requirements for setting large format tiles, ANSI A 108.2 section 4.3.8. Using a leveling system can improve the installation of this product.
NOTE: The 8-1/2” Hex is non-rectified. The minimum recommended grout joint it 3/32” and it may be necessary to adjust the size of the grout joint during installation
As noted in the American with Disabilities Act (ADA) the coefficient of friction varies considerably due to facts not under the control of entities such as the manufacturers and distributors. These factors include, but are not limited to, contaminants, slope of terrain, drainage conditions, adjacent surfaces, etc. Suitability for any installation can only be determined by a site examination of all conditions that could affect the slip resistance of the tile being installed. Continual cleaning and maintenance must be performed once the tile has been installed.
