Elios Castle Stone | Italian Glazed Porcelain Tile
The Castle Stone series evokes the floors of ancient castles where multiple sizes would be mixed together creating interesting patterns. The soft surface texture and slightly chiseled edges, inspired by reclaimed stone, create the effect of a surface worn by time and nature. The Modular Pattern is sold prepackaged with all the sizes you need to create the pattern (2 pieces 8x8, 1 piece 8x16, 2 pieces 16x16 and 1 piece 16x24).

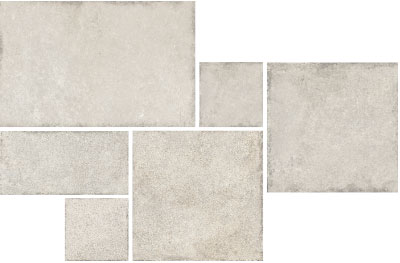

Chillon

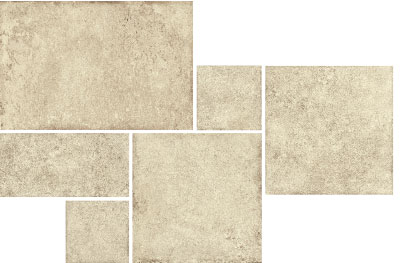

Howard

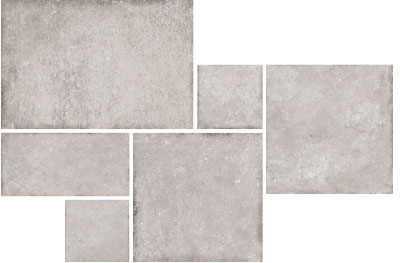

Kilkenny

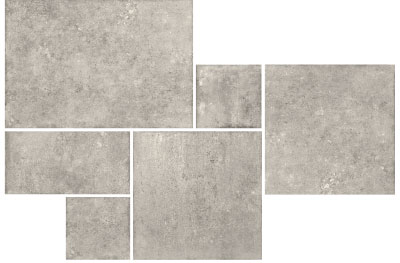

Saint Michel
Colors, Sizes & Trim
| Colors | |
|---|---|
| ESCSCN | Chillon (Cream) |
| ESCSHD | Howard (Beige) |
| ESCSKY | Kilkenny (Light Grey) |
| ESCSSM | Saint Michel (Medium Grey) |
| Sizes | |
| Non-Rectified Sold by the FULL CARTON only. |
|
| The Modular Pattern is a mix of 8 x 8, 8 x 16, 16 x 16 & 16 x 24 packed together. Each carton has 2 pieces 8 x 8, 1 piece 8 x 16, 2 pieces 16 x 16 and 1 piece 16 x 24. | |
| Trim | |
|---|---|
| ESCS--/SBN | 2-1/2 x 24 Surface Bullnose |
Usage & Installation
Castle Stone is suitable for use residential floors and light commercial applications.
IMPORTANT NOTE: The Modular Pattern is a non-rectified material. The sizes are designed to work together in the pattern with an average 1/8” grout joint. While it is intended to be installed as a pattern, the grout joints may not be perfectly uniform and the installer may have to make adjustments during installation, making some joints smaller and some joints larger, rather than relying on spacers.
Please note that the individual sizes are not available separately, so it is important to use each piece as it was intended to make the pattern (for example, not using the 8x8 pieces instead of cutting an 8x16) to avoid having to purchase excess material tocomplete the project.
It is important to mix the pieces to get the right shading as well as get the pattern right. Please note that we do not accept returns in general. In the rare occurrence that we make an exception and do take a return of this product, only factory sealedboxes can be accepted.

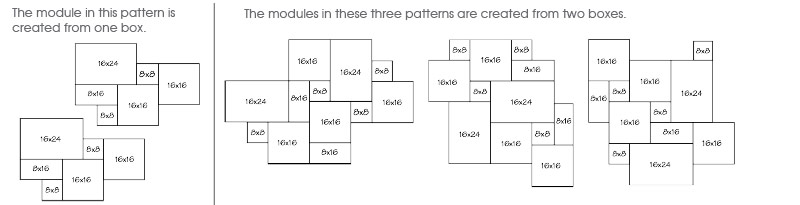

Modular Pattern
The Modular Pattern is a mix of 8 x 8, 8 x 16, 16 x 16 & 16 x 24 packed together. Each carton has 2 pieces 8 x 8, 1 piece 8 x 16, 2 pieces 16 x 16 and 1 piece 16x 24. Below are examples of patterns that can be created.
Non-Stock Item - Textured Finish
FOR PROJECTS THAT MEET MINIMUM QUANTITIES
Non-Stock prices are subject to change and should be reconfirmed at time of order. Available in all colors.
As noted in the American with Disabilities Act (ADA) the coefficient of friction varies considerably due to facts not under the control of entities such as the manufacturers and distributors. These factors include, but are not limited to, contaminants, slope of terrain, drainage conditions, adjacent surfaces, etc. Suitability for any installation can only be determined by a site examination of all conditions that could affect the slip resistance of the tile being installed. Continual cleaning and maintenance must be performed once the tile has been installed.
